GAS

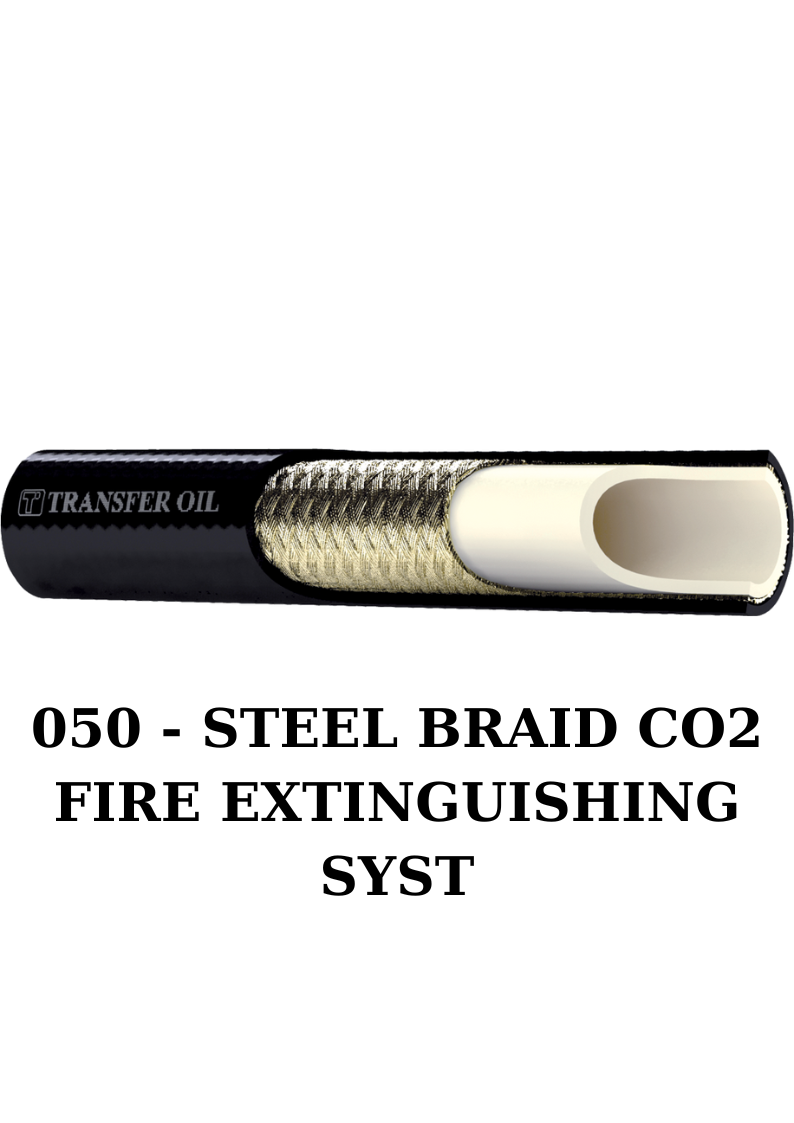

Thermoplastic hose MSHA approved for CO2 fire etinguishing systems from 140 to 300 bar (2000 to 4300 psi)

Chính sách ưu đãi đặc biệt

Tư vấn sản phẩm phù hợp

Hướng dẫn lắp đặt online

Cam kết bảo hành

Chiết khấu giá sỉ

Technical details

Part no.	DN	Inches	ID (mm)	OD (mm)	WP (bar)	BP (bar)	Safety factor	Bend radius (mm)	Weight (gr/m)	Ferrule standard	Ferrule A316L
0501	DN5	3/16	5.0	9.7	300	1200	4:1	30	128	SAB111	SAB811
0502	DN6	1/4	6.5	11.7	275	1100	4:1	40	164	SAB121	SAB821
0503	DN8	5/16	8.1	13.2	212	850	4:1	55	198	SAB131	SAB831
0504	DN10	3/8	9.8	15.5	212	850	4:1	65	245	SAB141	SAB841
0505	DN12	1/2	13.0	18.8	175	700	4:1	85	312	SAB151	SAB851
0506	DN16	5/8	16.3	22.0	140	560	4:1	115	334	SAB161	SAB861
0507	DN20	3/4	19.5	25.8	115	460	4:1	145	480	SAB171	SAB871

Polyester elastomer

One braid of steel wire

Polyurethane – black – pinpricked – white inkjet branding

Off-shore and industrial CO2 fire extinguishing installations

One steel braid design for increased mechanical and pressure resistance – Operating temperatures from -60°C to 93°C – pinpricked cover

Certificates

– MADE IN ITALY
