VHP

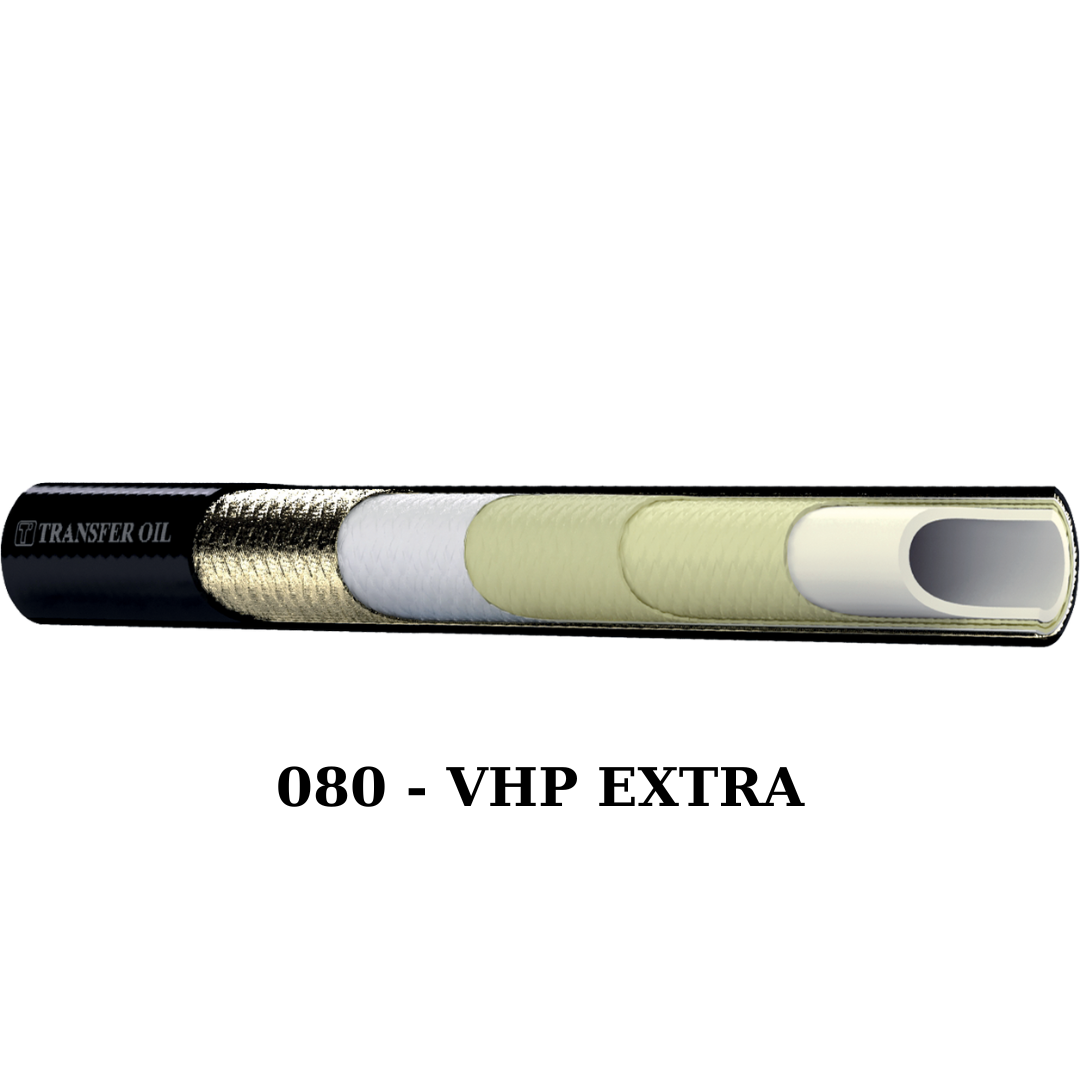

Thermoplastic hose MSHA approved with combined reinforcements for very high pressure hydraulic applications up to 700 bar (up to 10000 psi) (VHP EXTRA 800 bar).

Chính sách ưu đãi đặc biệt

Tư vấn sản phẩm phù hợp

Hướng dẫn lắp đặt online

Cam kết bảo hành

Chiết khấu giá sỉ

Category: Ống Thủy Lực Thermoplastic

Description

Technical details

Part no.	DN	Inches	ID (mm)	OD (mm)	WP (bar)	BP (bar)	Safety factor	Bend radius (mm)	Weight (gr/m)	Ferrule standard	Ferrule A316L
0460	DN4	1/8	4.0	9.1	700	2800	4:1	25	59	SAF101	SAF801
0461	DN5	3/16	5.0	11.0	700	2800	4:1	30	92	SAF111	SAF811
0462	DN6	1/4	6.6	14.0	700	2800	4:1	35	143	SAF121	SAF821
0464	DN10	3/8	9.7	18.1	550	2200	4:1	70	200	SAF141	SAF841

INNER TUBE

Polyester elastomer

REINFORCEMENT

Two braids of aramid fiber

COVER

Polyurethane, orange, black inkjet branding

APPLICATIONS

Rescue and safety equipment – High pressure systems and pumps – Jacking and rerailing equipment – Equipment requiring electrical high insulation

FEATURES

Two aramid braids construction for compact design – Lightweight and flexible – Tight bend radii for use on hose reels and in tight environments – Antiabrasion cover.
