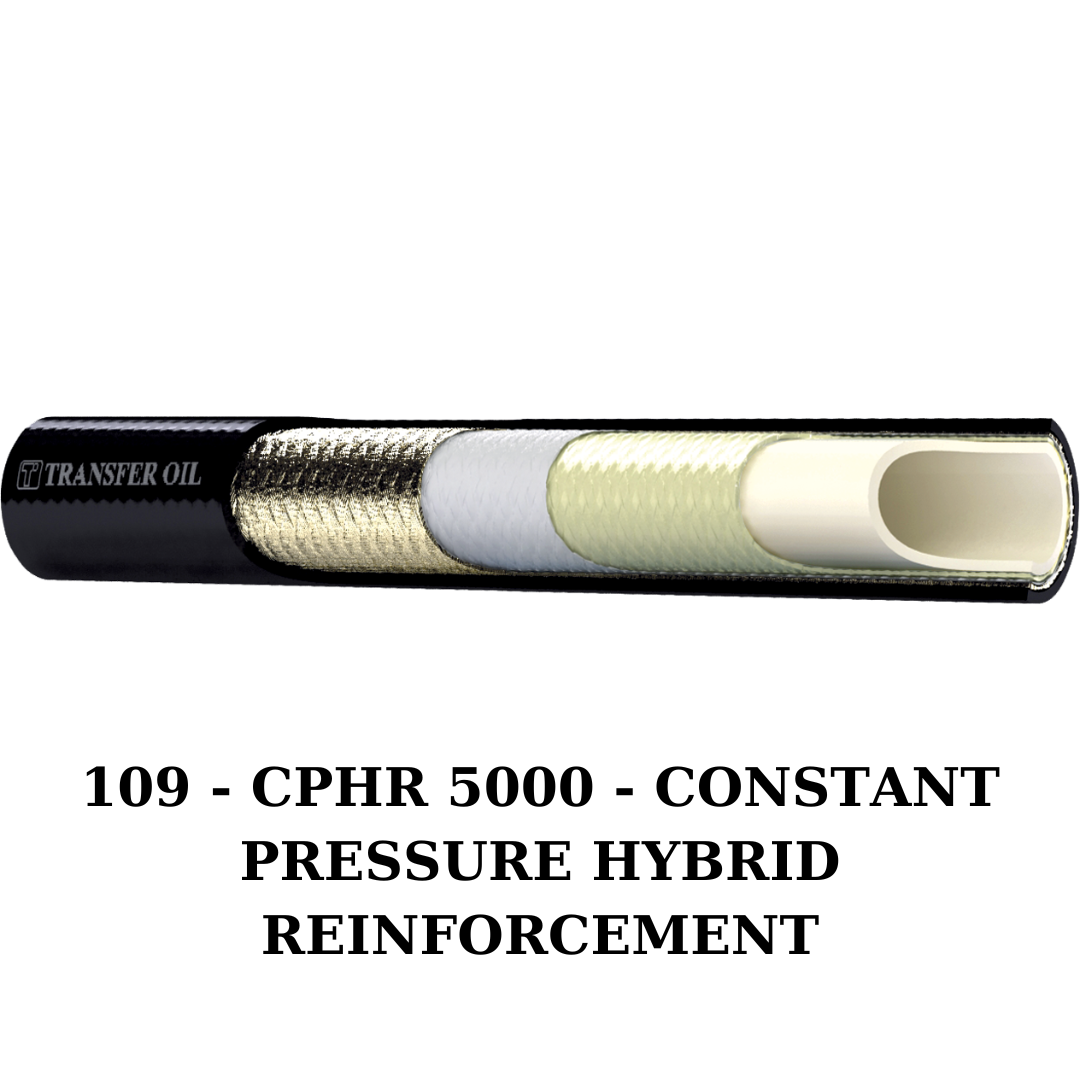

CPHR 5000
Thermoplastic hose MSHA approved constant pressure hose with combined reinforcement for very high pressure hydraulic applications up to 350 bar (up to 5000 psi)
Chính sách ưu đãi đặc biệt
Tư vấn sản phẩm phù hợp
Hướng dẫn lắp đặt online
Cam kết bảo hành
Chiết khấu giá sỉ
Technical details
| Part no. | DN | Inches | ID (mm) | OD (mm) | WP (bar) | BP (bar) | Safety factor | Bend radius (mm) | Weight (gr/m) | Ferrule standard | Ferrule A316L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1092 | DN6 | 1/4 | 6.5 | 11.8 | 350 | 1400 | 4:1 | 50 | 155 | SAC121 | SAC821 |
| 1093 | DN8 | 5/16 | 8.1 | 14.3 | 350 | 1400 | 4:1 | 50 | 200 | SAC131 | SAC831 |
| 1094 | DN10 | 3/8 | 9.7 | 16.2 | 350 | 1400 | 4:1 | 60 | 259 | SAC141 | SAC841 |
| 1095 | DN12 | 1/2 | 13.0 | 20.3 | 350 | 1400 | 4:1 | 80 | 341 | SAC151 | SAC851 |
INNER TUBE
Polyester elastomer
REINFORCEMENT
One braid of aramid fiber plus one braid of steel wire
COVER
Polyurethane, black, non pinpricked, white ink-jet branding
APPLICATIONS
General hydraulic applications requiring high mechanical protection properties of hose and braid, combined with high pressure: construction equipment, hoisting and handling equipment, machine tools
FEATURES
Rugged construction for HD application and prolonged lifetime – Combined reinforcement offers low volumetric expansion and optimum change in length characteristics – Abrasion resistant
– MADE IN ITALY
