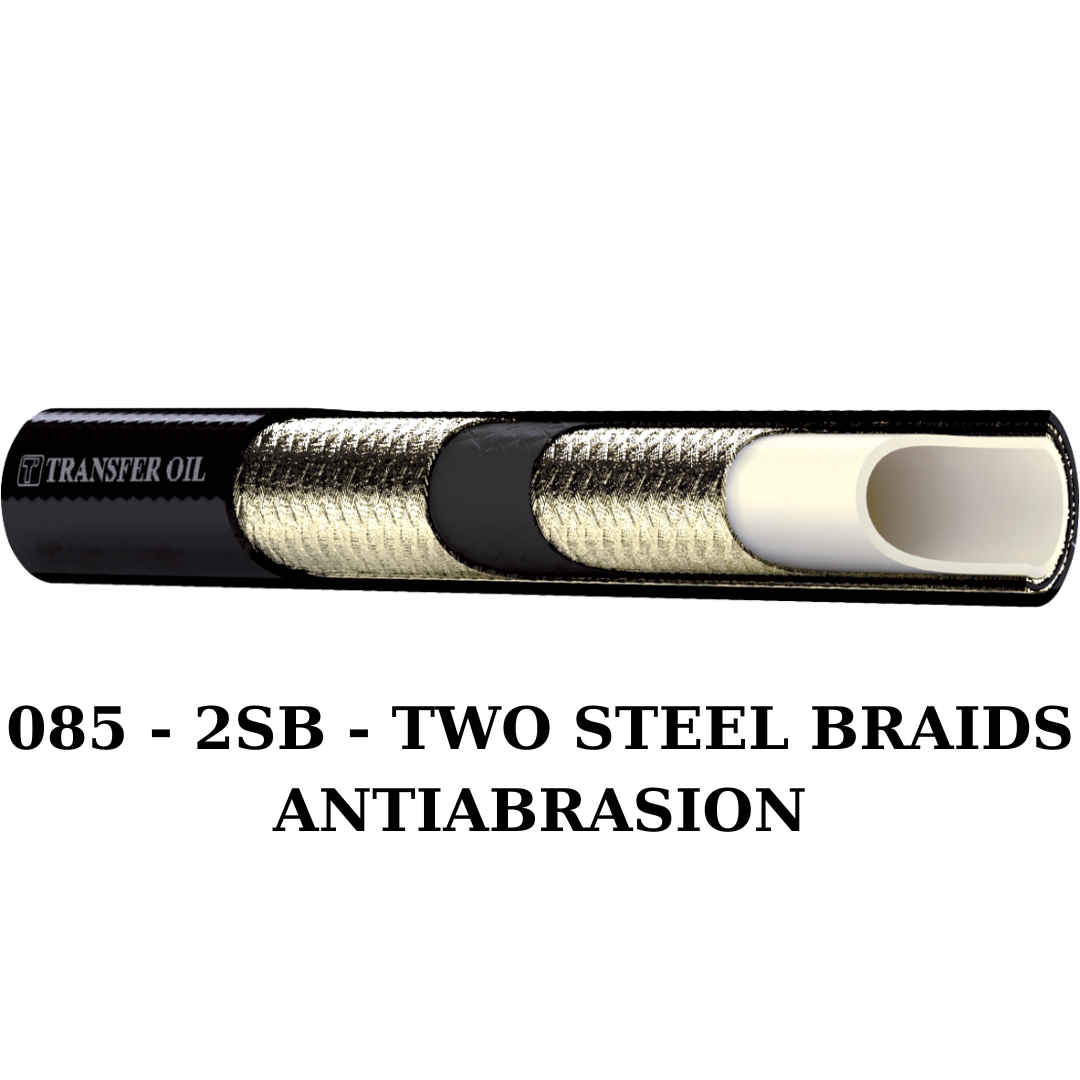

2SB | TWO STEEL BRAIDS
Thermoplastic hose with double steel reinforcement for high pressure hydraulic applications from 150 to 400 bar (2100 to 5800 psi)
Chính sách ưu đãi đặc biệt
Tư vấn sản phẩm phù hợp
Hướng dẫn lắp đặt online
Cam kết bảo hành
Chiết khấu giá sỉ
Technical details
| Part no. | DN | Inches | ID (mm) | OD (mm) | WP (bar) | BP (bar) | Safety factor | Bend radius (mm) | Weight (gr/m) | Ferrule standard | Ferrule A316L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0852 | DN6 | 1/4 | 6.4 | 12.8 | 400 | 1600 | 4:1 | 40 | 248 | SAC121 | SAC821 |
| 0853 | DN8 | 5/16 | 8.1 | 14.8 | 400 | 1600 | 4:1 | 50 | 312 | SAC131 | SAC831 |
| 0854 | DN10 | 3/8 | 9.8 | 16.8 | 330 | 1320 | 4:1 | 65 | 375 | SAC141 | SAC841 |
| 0855 | DN12 | 1/2 | 13.0 | 20.2 | 260 | 1040 | 4:1 | 85 | 474 | SAC151 | SAC851 |
| 0856 | DN16 | 5/8 | 16.3 | 23.7 | 220 | 880 | 4:1 | 115 | 561 | SAC161 | SAC861 |
| 0857 | DN20 | 3/4 | 19.5 | 27.8 | 150 | 600 | 4:1 | 170 | 717 | SAC171 | SAC871 |
INNER TUBE
Polyester elastomer
REINFORCEMENT
Two braids of steel wire
COVER
Polyurethane – black – non pinpricked – white ink-jet branding
APPLICATIONS
General hydraulic applications requiring high mechanical protection properties of hose and braid combined with high pressure: construction equipment – hoisting and handling equipments – machine tools
FEATURES
Rugged construction for HD application and prolonged lifetime – Two steel braid offers low volumetric expansion and optimum change in length characteristics – Abrasion resistant
Certificates
– MADE IN ITALY
