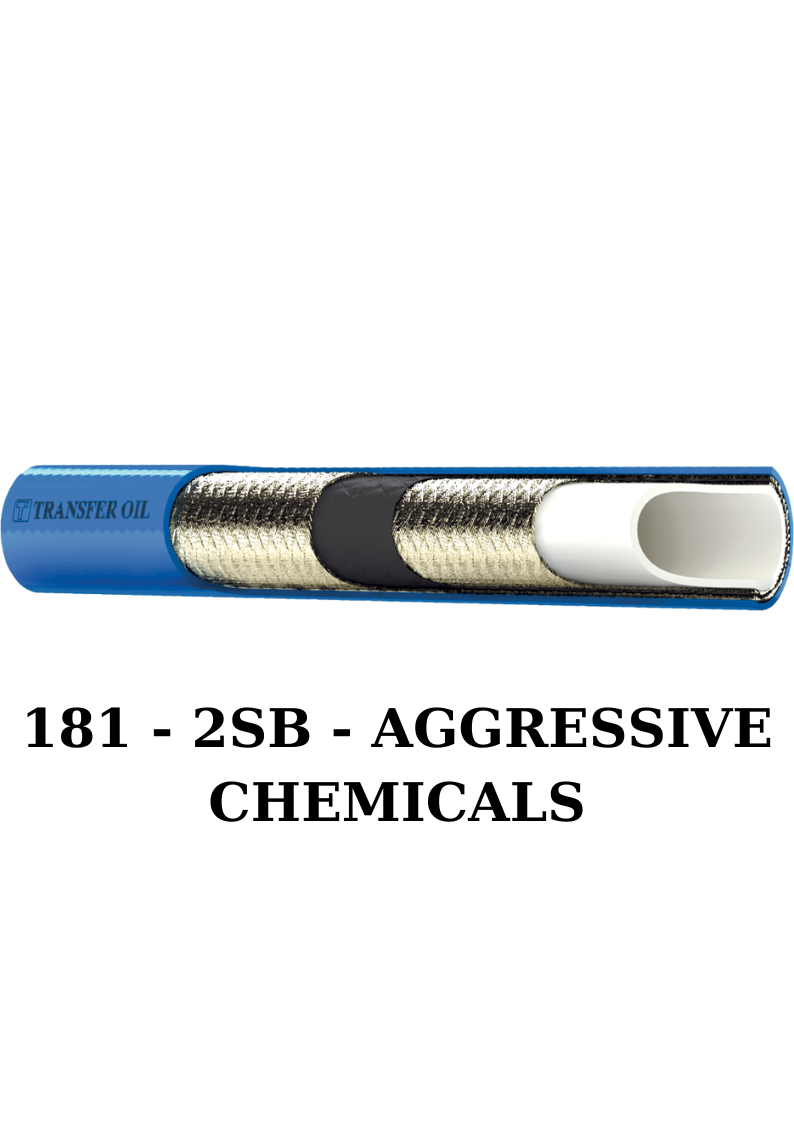

CHEMICALS
Thermoplastic conductive hose for heavy duty high pressure aggressive chemicals applications from 190 to 425 bar (2700 to 6100 psi).
Chính sách ưu đãi đặc biệt
Tư vấn sản phẩm phù hợp
Hướng dẫn lắp đặt online
Cam kết bảo hành
Chiết khấu giá sỉ
Technical details
| Part no. | DN | Inches | ID (mm) | OD (mm) | WP (bar) | BP (bar) | Safety factor | Bend radius (mm) | Weight (gr/m) | Ferrule standard | Ferrule A316L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1812 | DN6 | 1/4 | 6.4 | 12.8 | 425 | 1700 | 4:1 | 40 | 240 | SAC121 | SAC821 |
| 1814 | DN10 | 3/8 | 9.8 | 16.8 | 350 | 1400 | 4:1 | 65 | 364 | SAC141 | SAC841 |
| 1815 | DN12 | 1/2 | 13.0 | 20.2 | 300 | 1200 | 4:1 | 85 | 439 | SAC151 | SAC851 |
| 1816 | DN16 | 5/8 | 16.3 | 23.7 | 250 | 1000 | 4:1 | 115 | 546 | SAC161 | SAC861 |
| 1817 | DN20 | 3/4 | 19.5 | 28.0 | 215 | 860 | 4:1 | 170 | 693 | SAC171 | SAC871 |
| 1818 | DN25 | 1 | 25.8 | 35.2 | 190 | 760 | 4:1 | 180 | 977 | SAC181 | SAC881 |
INNER TUBE
Polyamide PA12
REINFORCEMENT
Two braids of steel wire
COVER
Polyurethane – blue – non pinpricked – black ink-jet branding
APPLICATIONS
High pressure aggressive chemicals systems requiring very high mechanical strength of hose and/or electrical conductivity – Applications requiring high chemical resistance to solvents and aggressive fluids such as two parts polyurethane injection foams
FEATURES
Polyamide type 12 tube construction – 2 steel braid for high pressure requirements and increased mechanical properties increasing lifetime of the hose under very harsh working conditions – Conductive – Blue cover.
– MADE IN ITALY
