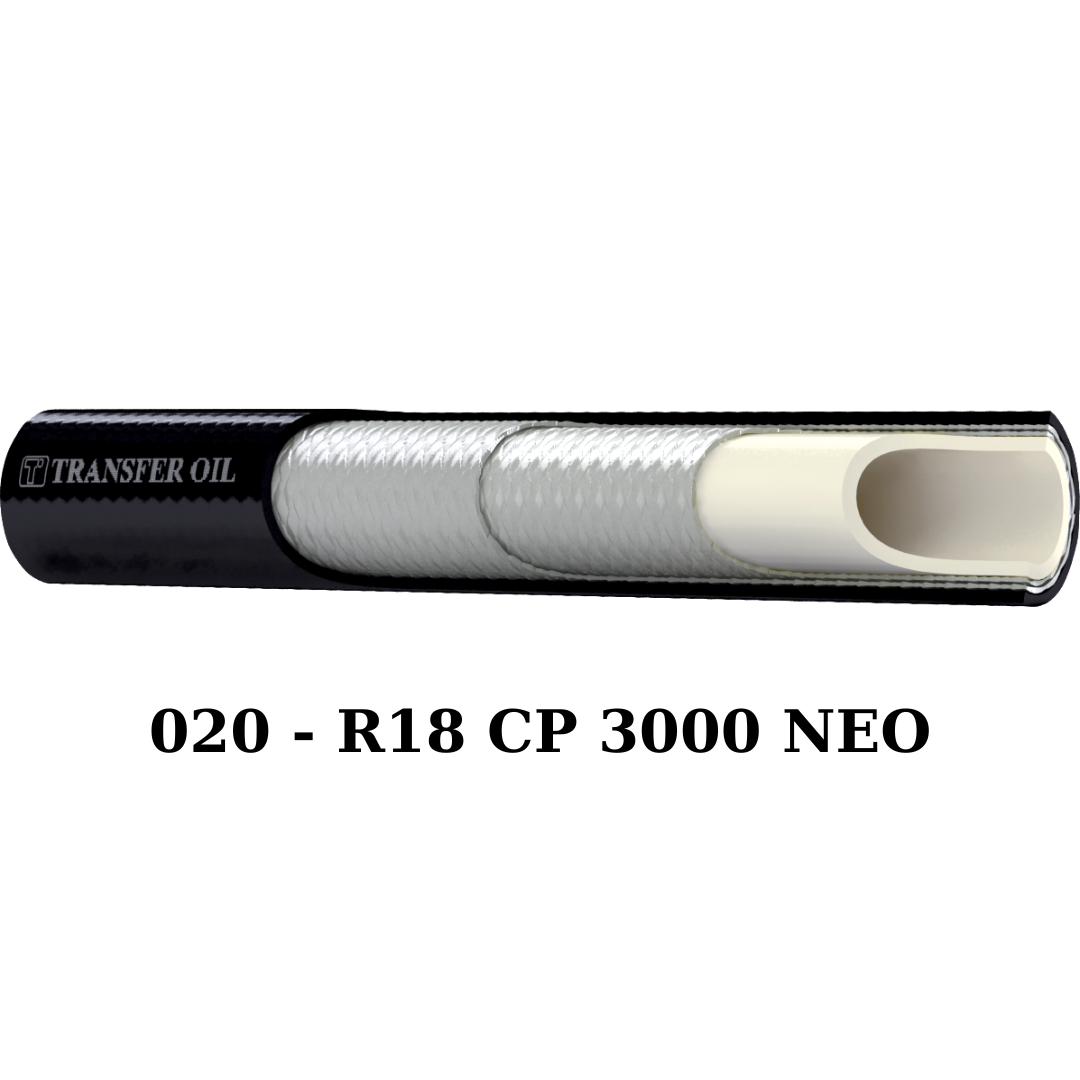

R18 CP 3000 NEO

Constant pressure thermoplastic hose specifically designed for hydraulic applications in material handling. From 210 to 250 bar (3000 to 3600 psi)

Chính sách ưu đãi đặc biệt

Tư vấn sản phẩm phù hợp

Hướng dẫn lắp đặt online

Cam kết bảo hành

Chiết khấu giá sỉ

Technical details

Part no.	DN	Inches	ID (mm)	OD (mm)	WP (bar)	BP (bar)	Safety factor	Bend radius (mm)	Weight (gr/m)	Ferrule standard	Ferrule A316L
0201	DN5	3/16	5.0	9.1	210	840	4:1	25	50	SAB111	SAB811
0202	DN6	1/4	6.5	11.8	210	840	4:1	35	90	SAB121	SAB821
0203	DN8	5/16	8.1	14.3	210	840	4:1	45	130	SAB131	SAB831
0204	DN10	3/8	9.7	16.5	210	840	4:1	45	165	SAB141	SAB841
0205	DN12	1/2	13.0	21.2	210	840	4:1	70	240	SA5151	SA5851
0206	DN16	5/8	16.3	26.1	210	840	4:1	100	370	SA5161	SA5861

Polyester elastomer

One or two braids of synthetic fiber

Polyurethane – black – non pinpricked – white ink-jet branding

Forklift trucks

2 polyester braid construction from 5/16″-DN8 onwards – Tight bend radii without cover wrinkling

Certificates

– MADE IN ITALY
