CHEMICALS

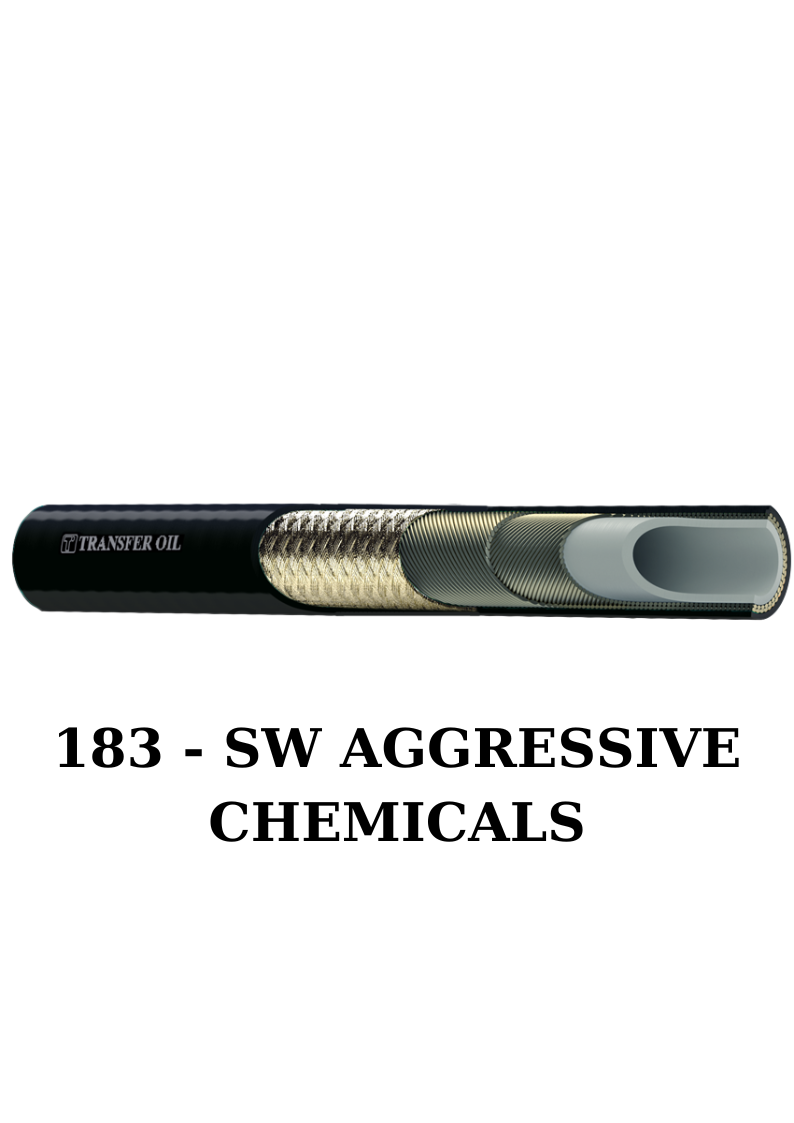

Thermoplastic hose with hybrid steel wire reinforcement for very high pressure chemicals applications From 280 to 420 bar (4000 to 6000 psi).
Chính sách ưu đãi đặc biệt
Tư vấn sản phẩm phù hợp
Hướng dẫn lắp đặt online
Cam kết bảo hành
Chiết khấu giá sỉ
Technical details
| Part no. | DN | Inches | ID (mm) | OD (mm) | WP (bar) | BP (bar) | Safety factor | Bend radius (mm) | Weight (gr/m) | Ferrule standard | Ferrule A316L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1835 | DN12 | 1/2 | 13.0 | 20.7 | 350 | 1400 | 4:1 | 165 | 475 | SAF151 | SAF851 |
| 1836 | DN16 | 5/8 | 16.3 | 24.8 | 420 | 1680 | 4:1 | 220 | 667 | SAF161 | SAF861 |
| 1837 | DN20 | 3/4 | 19.6 | 29.2 | 350 | 1400 | 4:1 | 240 | 914 | SAF171 | SAF871 |
| 1838 | DN25 | 1 | 25.8 | 36.0 | 280 | 1120 | 4:1 | 350 | 1183 | SAL181 | SAL881 |
| 1839 | DN32 | 1+1/4 | 32.0 | 45.2 | 310 | 1240 | 4:1 | 500 | 1916 | SAL191 | SAL891 |
INNER TUBE
Polyamide PA12
REINFORCEMENT
Two spiral layers + one braided layer of steel wire.
COVER
Polyamide PA12 – black – non pinpricked – white ink-jet branding
APPLICATIONS
Very high pressure aggressive chemicals systems requiring very high mechanical strength of hose and/or electrical conductivity – Applications requiring high chemical resistance to solvents and aggressive fluids such as two parts polyurethane injection foams
FEATURES
Polyamide type 12 tube construction – Combined reinforcement for high pressure requirements and increased mechanical properties increasing lifetime of the hose under very harsh working conditions – Conductive.
– MADE IN ITALY
