CHEMICALS

Technical details

Part no.	DN	Inches	ID (mm)	OD (mm)	WP (bar)	BP (bar)	Safety factor	Bend radius (mm)	Weight (gr/m)	Ferrule standard	Ferrule A316L
0482	DN6	1/4	6.6	12.7	700	2800	4:1	35	177	SAF121	SAF821
0483	DN8	5/16	8.1	16.2	700	2800	4:1	60	278	SAF131	SAF831
0484	DN10	3/8	9.8	18.9	700	2800	4:1	90	322	SAF141	SAF841
0485	DN12	1/2	13.0	23.2	590	2360	4:1	100	566	SAF151	SAF851
0486	DN16	5/8	16.3	26.6	500	2000	4:1	160	574	SAF161	SAF861
0487	DN20	3/4	19.5	30.5	450	1800	4:1	180	654	SAF171	SAF871
0488	DN25	1	25.8	38.2	310	1240	4:1	250	897	SAF181	SAF881

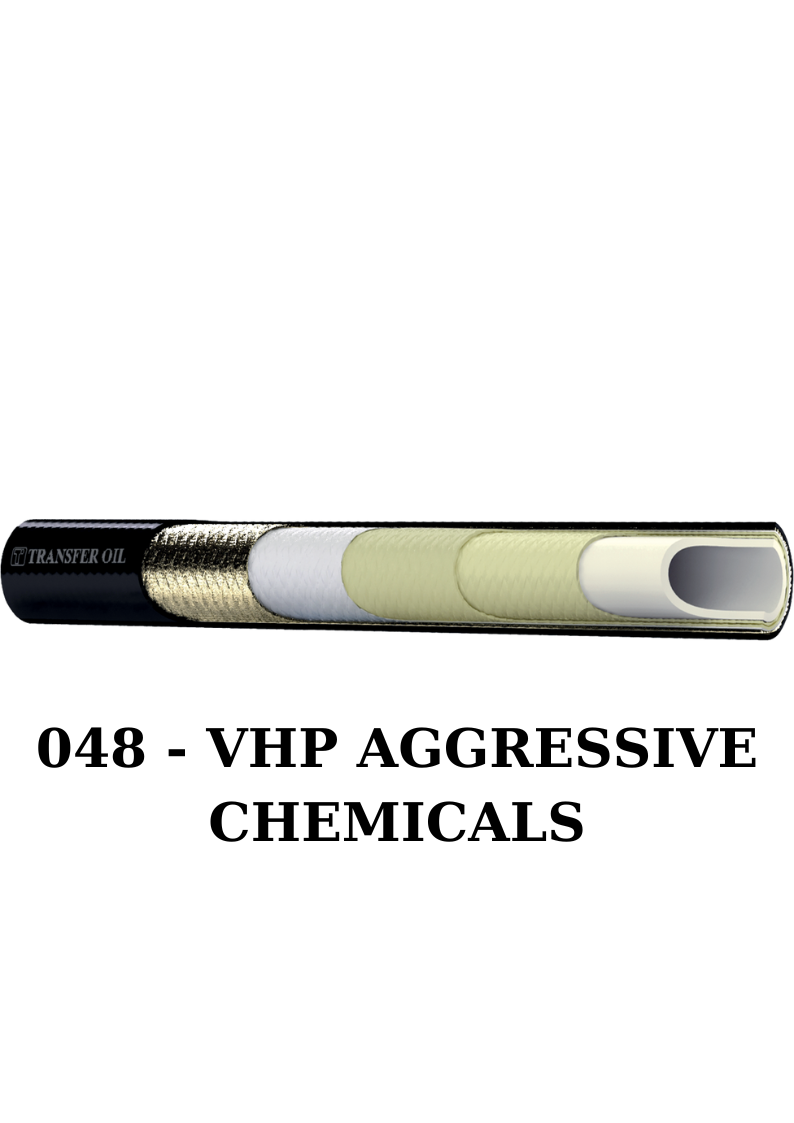

INNER TUBE

Polyamide PA12

REINFORCEMENT

One or two braids of aramid fiber plus one braid of steel wire

COVER

Polyurethane up to 1/2″, Special Polyester for 5/8″ and upwards – black – non pinpricked – white ink-jet branding

APPLICATIONS

Very high pressure aggressive chemicals systems requiring very high mechanical strength of hose and/or electrical conductivity – Applications requiring high chemical resistance to solvents and aggressive fluids such as two parts polyurethane injection foams

FEATURES

Polyamide type 12 tube construction – Combined reinforcement for high pressure requirements and increased mechanical properties increasing lifetime of the hose under very harsh working conditions – Conductive.

 – MADE IN ITALY
